- Meet to ASTM E1942 standards
- Servo hydraulic actuator operation
- High precision in applying dynamic loads with different amplitudes on constant force, extension, strain, and stress proportional to all types of fatigue wave forms i.e. sinusoidal, rectangular, triangular, saw-toothed, as well as desired forms or random points pattern
- Applying fatigue loads at high frequencies
- Individual PID control system for all controlling modes and applying the accurate waveform defined within the software
- Interface with onboard DSP, 5 KHz working frequency; checking and measuring force, displacement and strain (extensometer) via closed loop control with 5 KHz frequency response
- Utilizing state-of-the-art electronic components with fast response time and high sampling rate as well as best servo hydraulic valve
- Application of precision low profile dynamic load cell to reduce the lateral forces effects
- Non-contact electronic linear encoder installed on the jack for the entire stroke, accuracy 1µm
- Capable of mounting tensile, compression and bending grips
- Powerful software capable of controlling various experiments as well as real time processing
- Utilizing special seals required for actuator’s dynamic test under elevated temperature, inspecting all parts, measuring tools as well as controlling devices for long-term tests
- Equipped with controlled grip system for clamping brittle and sensitive specimens
- Hydraulic crosshead lift/clamp controls
- Carrying out various static tests with the ability of stroke adjustment
- Proper oil cooling system to increase the oil lifetime
- Compensating system for machine stiffness and applied inertia forces

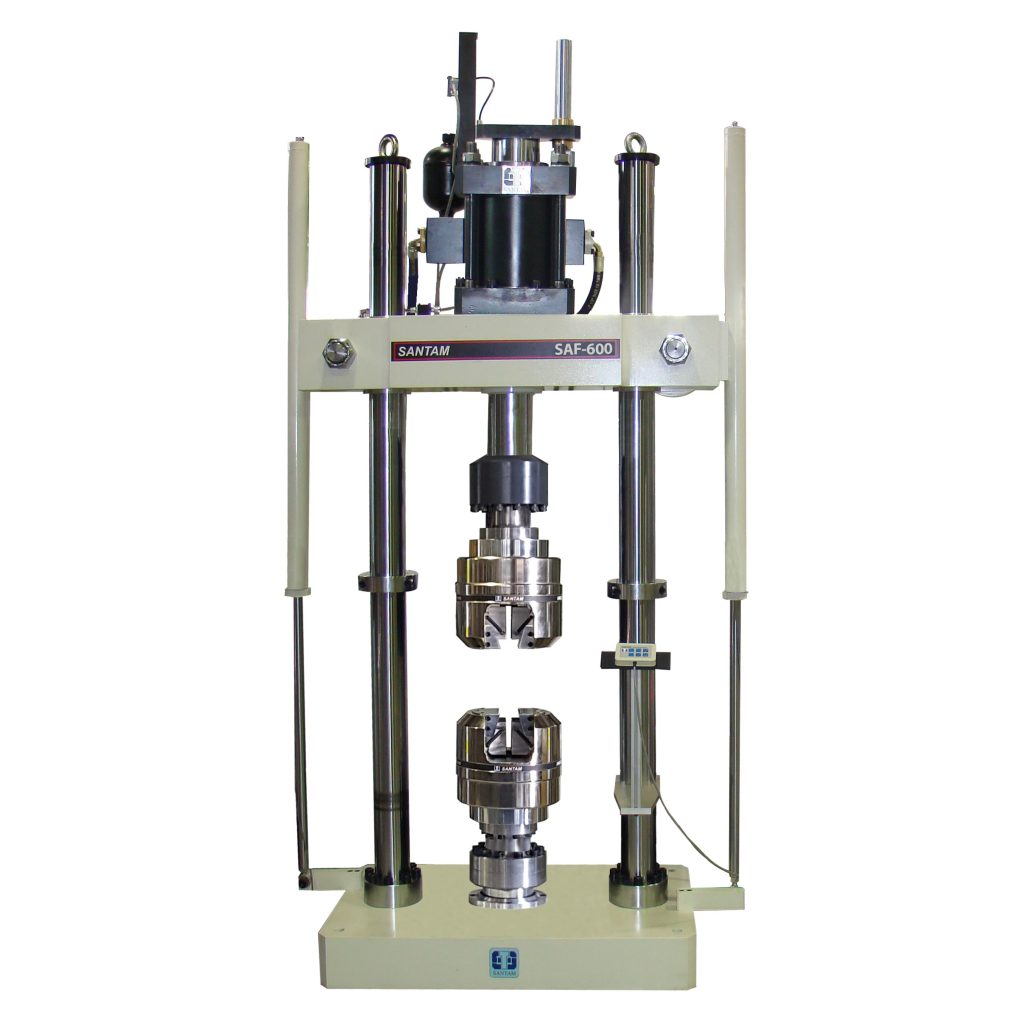

SAF axial fatigue testing machines carry out fatigue, durability, and lifetime tests on various specimens as per different procedures and standards including ISO 14242 and ASTM E1942, etc. They are intended to apply dynamic loads with sinusoidal, triangular, rectangular (with the ability to determine slope), saw-toothed, and random patterns that can assume the pertinent pattern within an amplitude of force, displacement, strain, and stress up to 100 Hz. Latest electronic hardware with high data acquisition, fast time response, best sensors and transducers, most accurate servo valves, real-time control system, powerful software with optimized control algorithm and data processing for all control modes, as well as hydraulic/ mechanical system design especially for long-term tests, enable SAF machines to implement and simulate the most real and diversified test conditions for practical fatigue testing of various parts.The mechanism and function of this type of machines is based on hydraulic servo valves, using high frequency DSP technology. Frequency response, sampling and control system is very high in this machine so that each 200 microsecond it receives feedback from all measuring instruments, and controls the machine in a closed loop system regarding PID control. In addition to usual fatigue tests, SAF-250 can carry out crack tests (initiation and propagation) as well. The unit has unique and advanced software (intranet connections with hardware via LAN port), capable of applying periodic loads with certain amplitude and frequency along with different waveforms, applying noise, offset, numerous applied cycles and determining storage cycles with the ability to change all test parameters online during the test as well as reporting all required outputs. SAF-250 is equipped with a cooling system (intercooler), and new plate heat exchanger with high efficiency for oil heat dissipation.
Related products
This device is widely used in various fields of research and quality control for fatigue, durability, performance and life determination of parts, which can be mentioned as follows:
• Steel parts
• Rubber parts
• Springs and shock absorbers, dampers
• Nanomaterials
• Composites
• Sports equipment
• Biomedicine
• Academic research
• Medical engineering research
•Orthopedic specimens
