QC and Laboratory Equipment in the Polymer Pipes and Fittings Industry

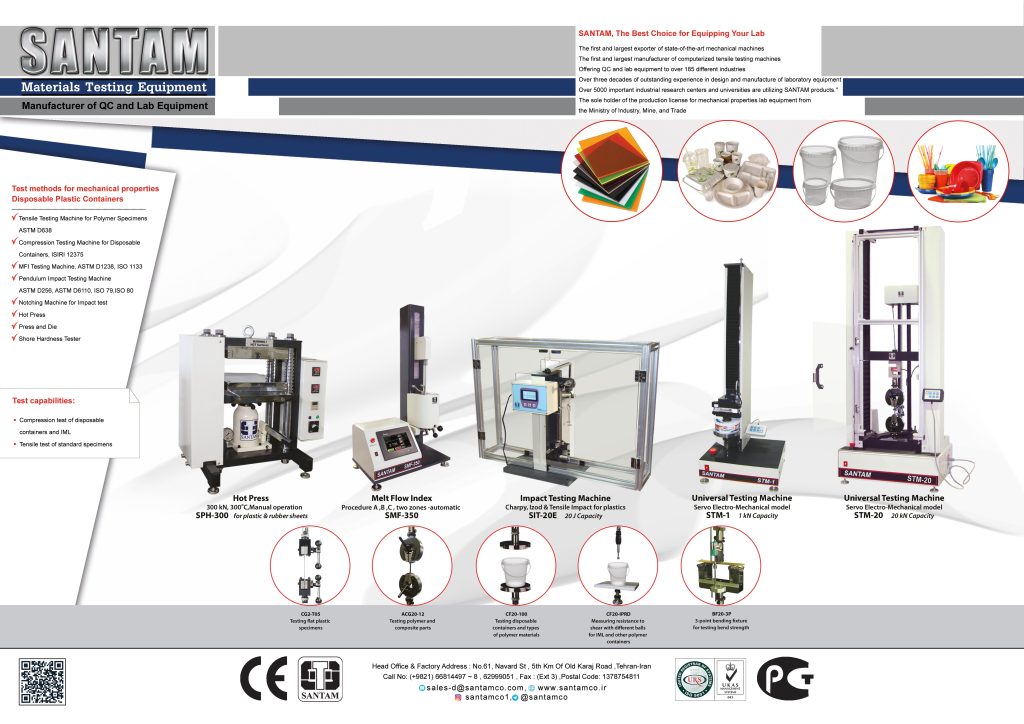

Disposable plastic containers

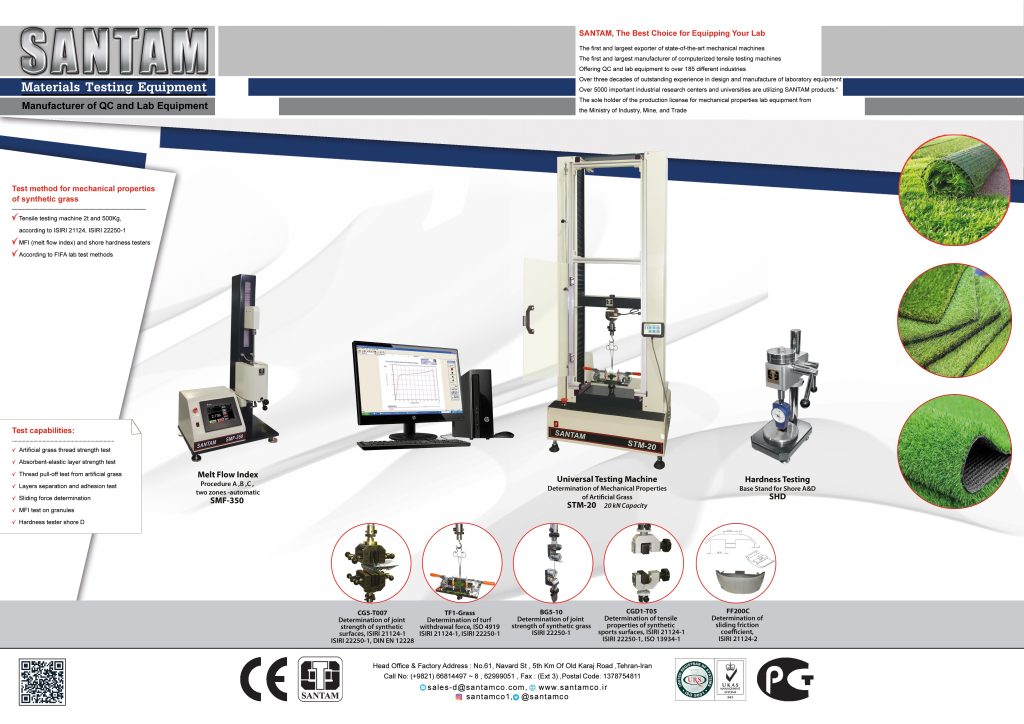

Artificial Grass
To test the quality of raw materials and final products in artificial grass, various testing machines are used, including tensile testing machine, MFI tester, and hardness tester, to evaluate the quality of cord and adhesion according to ISIRI 2124-1, as well as ISIRI 22250-1 with FIFA lab tests
Determination of tuft withdrawal force (applicable to artificial grass yarn) according to ISO 4919, 2124-1, ISIRI 22250-1
Determination of joint strength of artificial grass (artificial grass sub-layers) in accordance with ISIRI 2124-1, ISIRI 22250-1, DIN EN 12228
Artificial grass yarn tensile test (single yarn or yarns) according to ISIRI 22250-1
Determination of sliding force according to ISIRI 21124-2
Tensile testing of fabrics; determining the strength of elastic /absorbent layer according to ISIRI 1-21124, ISIRI 22250-1, ISO 13934-1

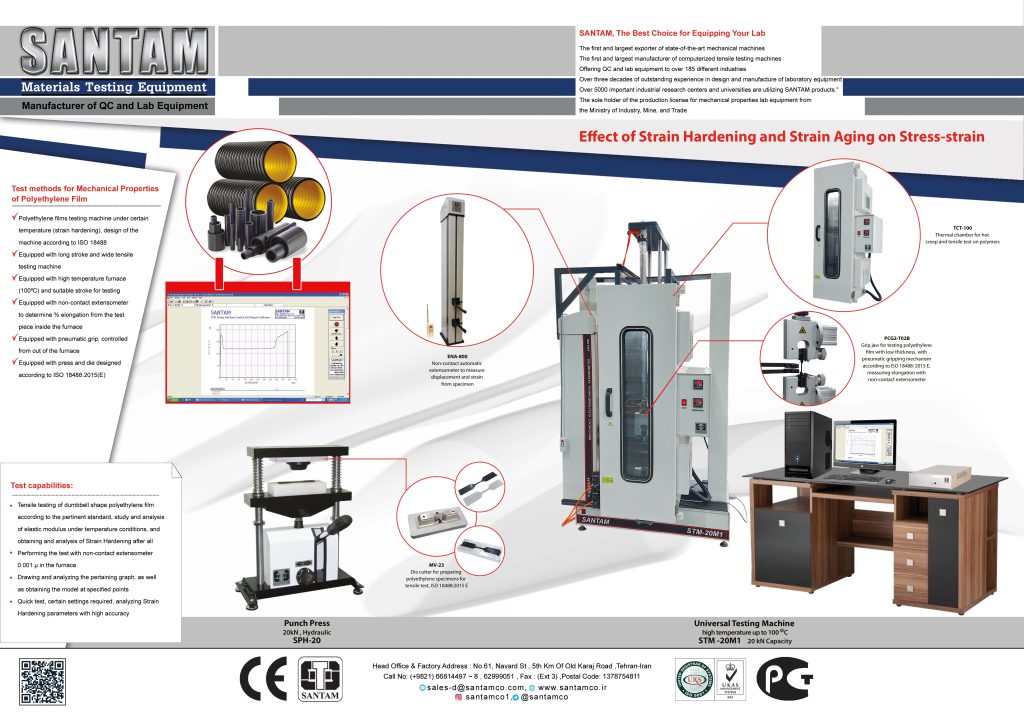

Strain-hardening (Pipes)
To assess the quality of PE pipes and enhance their durability and resistance to rupture and bursting caused by cracks and scratches, a specialized test is defined under specified temperature conditions. This test accurately measures hardness, strain and modules. To achieve this, a testing machine has been designed to evaluate PE films at controlled temperatures, assessing strain hardening according to ISO 18488. The specifications are as follows:
Wide span and long stroke
Equipped with a furnace that maintains a uniform and controlled temperature
Equipped with non-contact extensometer
Includes proper grips

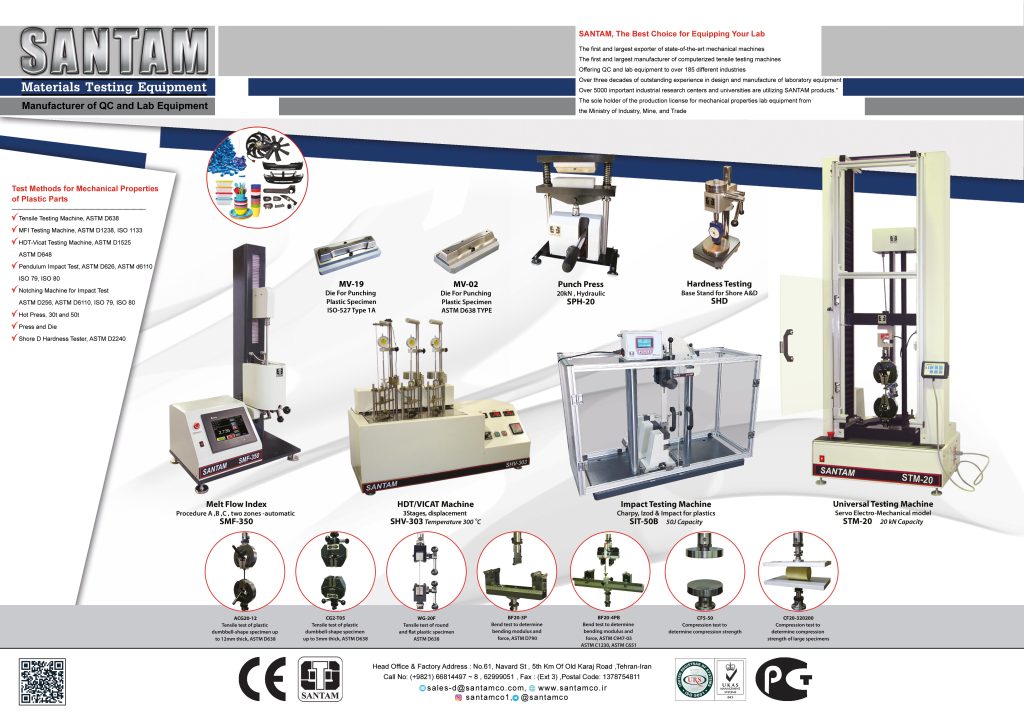

Plastic Parts Test
To assess the quality of PE pipes and enhance their durability and resistance to rupture and bursting caused by cracks and scratches, a specialized test is defined under specified temperature conditions. This test accurately measures hardness, strain and modules. To achieve this, a testing machine has been designed to evaluate PE films at controlled temperatures, assessing strain hardening according to ISO 18488. The specifications are as follows:
Wide span and long stroke
Equipped with a furnace that maintains a uniform and controlled temperature
Equipped with non-contact extensometer
Includes proper grips

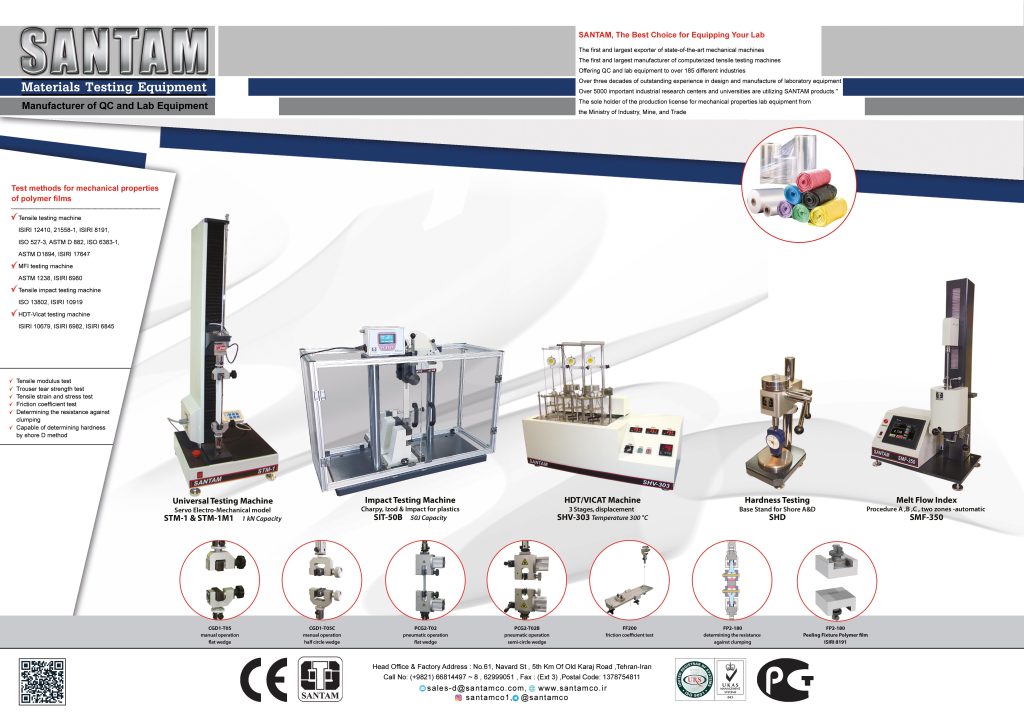

Polymer films
UPVC
To investigate the quality of manufactured UPVC profiles, various testing machines are offered:
Tensile testing machine to assess tensile strength and (%)elongation of samples from the produced profile
T-shaped connection bending and compression testing machine
T-shaped connection tensile testing machine according to ISIRI 12291, 10930 and BS EN 514:2000
HDT-Vicat testing machine
Pendulum impact testing machine, capacity 20 J
Shore D hardness tester

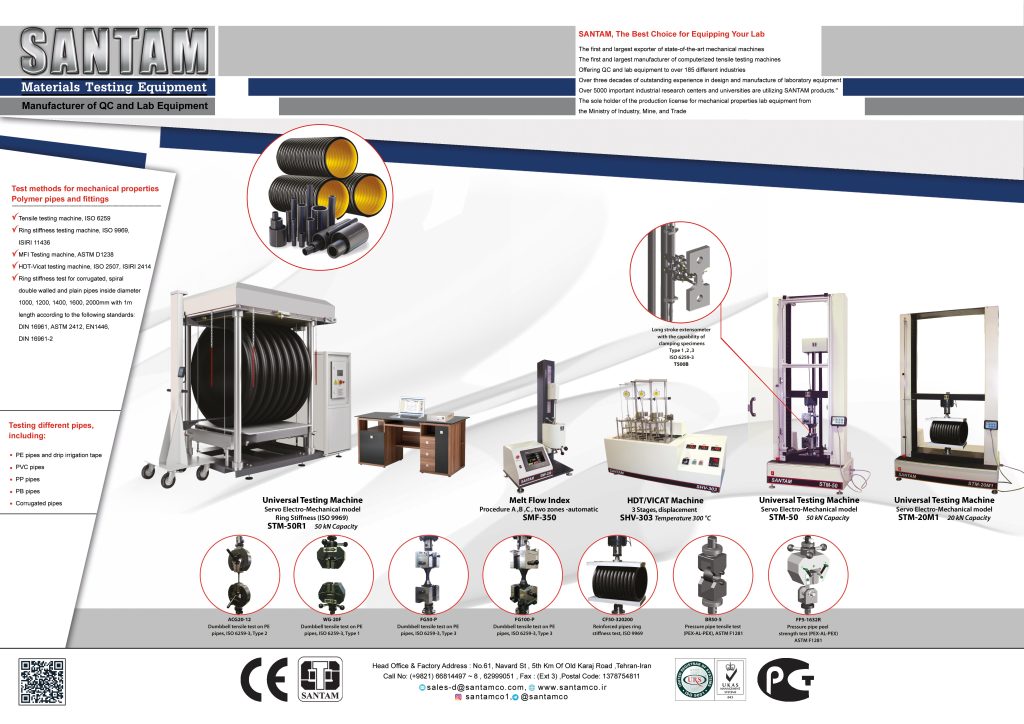

Polymer Pipes & fittings
To investigate the quality of manufactured UPVC profiles, various testing machines are offered:
Tensile testing machine to assess tensile strength and (%)elongation of samples from the produced profile
T-shaped connection bending and compression testing machine
T-shaped connection tensile testing machine according to ISIRI 12291, 10930 and BS EN 514:2000
HDT-Vicat testing machine
Pendulum impact testing machine, capacity 20 J
Shore D hardness tester

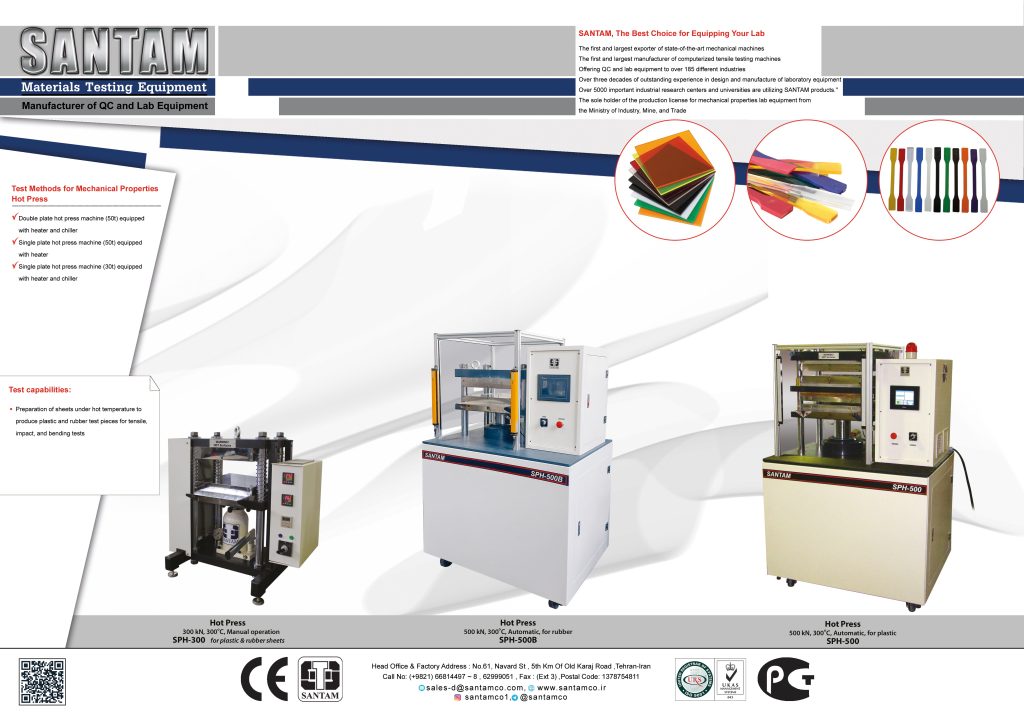

Hot Press

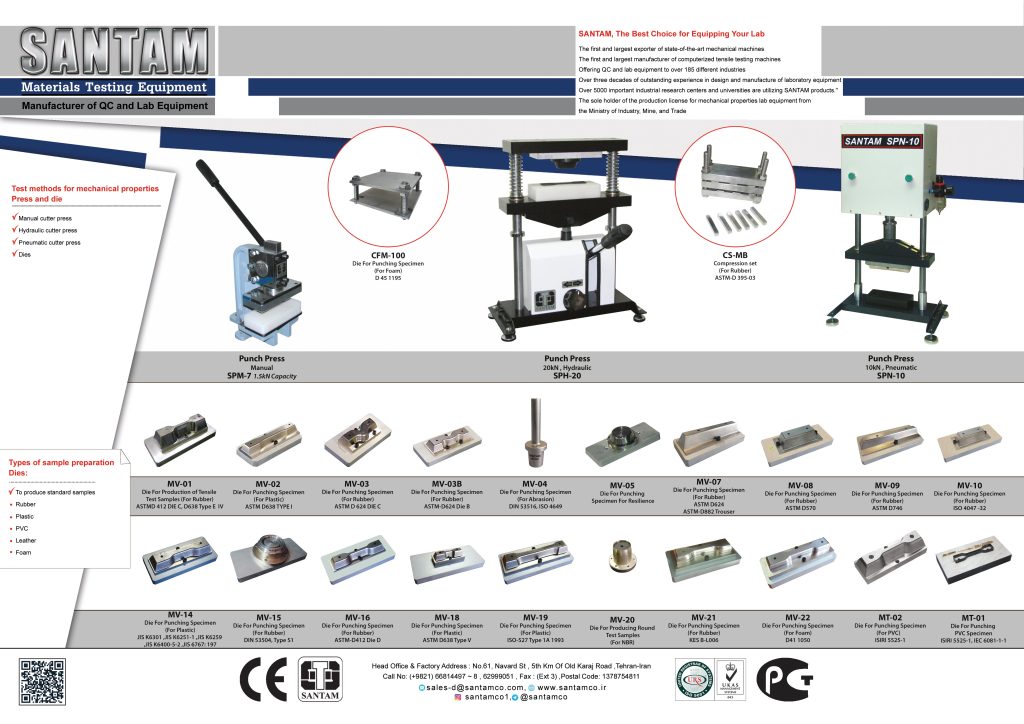

Press and Die
To prepare polymer samples for tensile test, a sample preparation press and die are required. Presses are available in three models: manual, hydraulic, and pneumatic, which are used to prepare the specimen according to standards. To prepare test pieces, a variety of dies are needed manufactured with high accuracy according to corresponding standards using CNC and wire-cut machines.
